Xenith Generation 2

Frame	Carbon SL Fiber
Sizes	48, 51, 54, 56, 58, 61 cm
Colors	Vogue Silver Gold Violet Industrial Rust Lavender Black

Pricing

Frame kit: 2 499.00 €
Whole bike from: 3 399.00 €

Custom Price Samples

Shimano 105 2×11: 3 399.00 €
Shimano 105 2×12: 3 599.00 €
Shimano 105 Di2 2×12: 3 999.00 €
Ultegra Di2 2×12: 4 899.00 €
Dura Ace Di2: 6 399.00 €
SRAM Rival AXS: 4 599.00 €
SRAM Force AXS: 5 299.00 €
SRAM Red E1: 5 999.00 €

Individual bike configuration Configure

Made For The Perfect Ride. Designed By STEVENS

Our award-winning endurance model STEVENS Xenith gets an upgrade to the ultra-light SSL carbon frame technology. It reduces the weight of the unpainted raw frame by an average of 120 grams. A sophisticated layup of the carbon fibres and an optimised resin insert ensure that the excellent stiffness and comfort values have been retained. Of course, we have retained the frame geometry that is finely tuned to endurance needs. With a shorter and sloping top tube and a slightly longer head tube, it offers a high level of comfort. Ideal conditions for even more performance in long races, on extensive training rides or fast laps with the Best Bike Buddies.

Carbon-Endurance-Modell mit komfortabler Rahmengeometrie für lange Rennen – jetzt noch leichter
Full cable integration for highest aerodynamic demands
32 mm tire clearance for ultimate comfort
Numerous innovative options in the configurator
Wide range of sizes: 48/51/54/56/58/61 cm

Technology

Endurance frame

Made for long hours in the saddle: the marathon geometry of the Xenith offers plenty of comfort with high riding efficiency.

SSL frames

Thanks to a further optimised production process, we can save up to 15 percent of the frame weight of the Arcalis and Xenith SSL frames.

Full carbon fork

Lightweight plus steering precision, effortless climbing and razor-sharp cornering performance.

QR-12 Thru Axle f+r (Race)

Offers perfect conditions for powerful disc brakes on an ultra-light road bike.

Tyre clearance up to 32 mm (Race)

Even the road pros at the Tour de France have realised that wider tyres roll faster.

Endurance frame

With the balanced, finely tuned yet extremely sporty carbon frame of the STEVENS Xenith, the sloping top tube combined with the slimmer and longer seat post provides more flex and comfort on the saddle. Impacts are absorbed effortlessly – also thanks to the tyre width of up to 32 mm. The successful mix of comfort, ergonomics and riding efficiency is the result of our detailed development work.

SSL frames

The weight reduction was achieved through the use of selected carbon fibres, a sophisticated layup and optimised use of resin. The refined production method results in frames that have the same stiffness and comfort values as the previous frames despite the lower weight.

Full carbon fork

It is simply intelligent lightweight construction when STEVENS engineers use 100% carbon fibres for the forks of road racers and cross bikes, from the dropouts right up to the steerer tube. The resulting riding experience on the road and off-road is impressive: lightweight plus steering precision, effortless climbing and razor-sharp cornering performance. Maximum torsional rigidity even for the most powerful disc brakes.

QR-12 Thru Axle f+r (Race)

It is especially important for disc brakes that ultra-lightweight road bikes are prepared to accommodate them in order to make the most of their advantages. So the forks and rear triangles of your disc road bikes are spec’d with extra-safe 12 mm thru-axles.

Tyre clearance up to 32 mm (Race)

Even the road pros at the Tour de France have now realised that wider tyres roll faster. And isn’t it these small side roads with their often dubious tarmac quality that are the most fun? In any case, anyone who frequently rides on routes with less slippery surfaces can prepare their racing bike for this with tyres up to 32 mm wide – and then benefit from greater riding comfort.

Illustration may differ. Specification subject to change.

Chassis

Frame: Carbon SL Fiber

Fork

STEVENS Full Carbon SL

Tapered Steerer 1 1/8" - 1 1/2"
O.L.D.: 100 mm
Brake: flatmount disc

Data

Laden weight: 115 kg

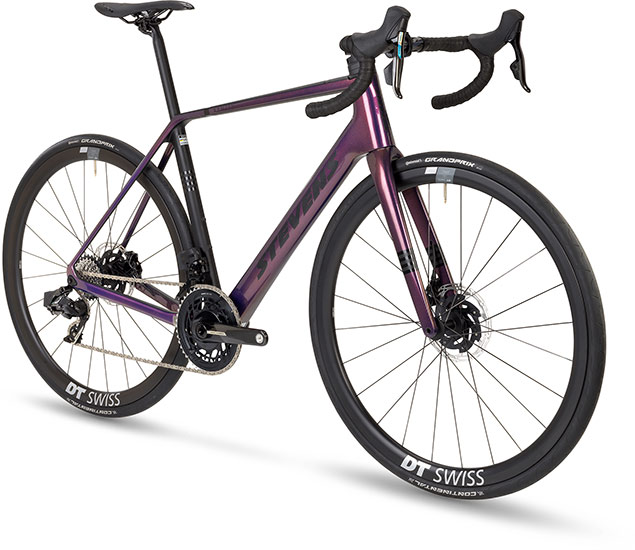

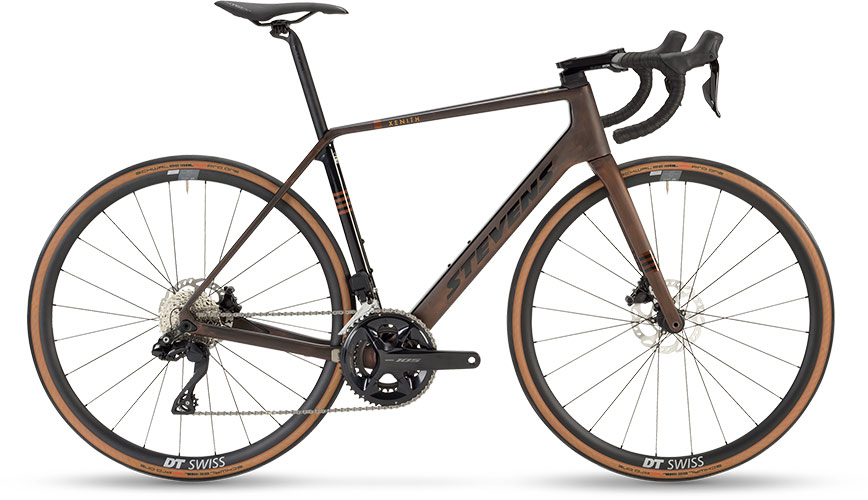

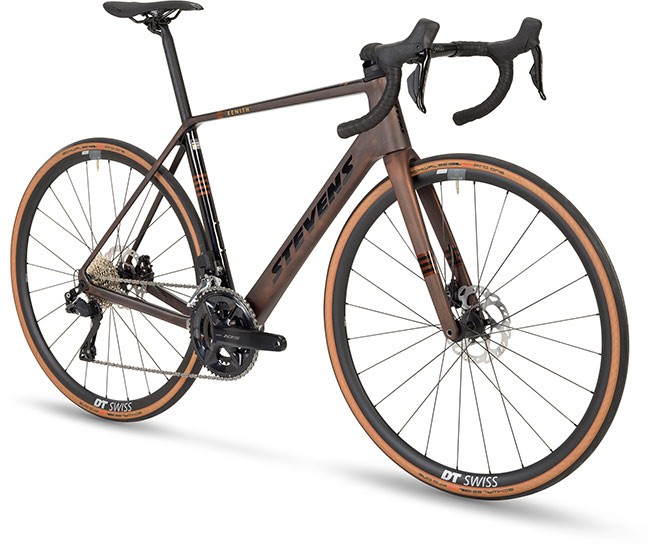

Color(s): Gold Violet | Industrial Rust | Vogue Silver

Frame weight: about 920 g

Fork weight: 498 g

Sizes: 48, 51, 54, 56, 58, 61 cm

Test Reports

Endurance-Renner mit reichlich Komfort

04/2022

Das perfekte Rad für alle, die einen Endurance-Renner mit reichlich Komfort suchen, diesen aber nicht an einer entspannten Sitzposition festmachen wollen.

Geometry

schematische Skizze eines Fahrrades mit eingezeichneten Geometrie-Messpunkten

The online size guide does not replace advice from a specialist retailer. It serves as an initial orientation and may differ from personal preferences. A test ride offers the best comparison.

Frame height (cm)		48	51	54	56	58	61	Measuring mode
Seattube length	A1	514	527	561	583	604	643	nominal
Seattube length	A2	411	430	455	477	499	527	bottom bracket to top of seattube
Seattube length	A3	422	442	466	488	512	540	bottom bracket to top of top tube
Top tube length	B	495	510	521	536	551	568
Top tube horizontal	C	510	525	539	555	570	590	center headtube to center seatpost/seattube
Headtube angle (°)	D	71,5	71,5	72,5	72,5	73	73,5
Seattube angle (°)	E	75,5	74,5	74	73,5	73,5	73
Wheelbase	F	979	986	987	999	1009	1018
Chainstay length	G	415	415	415	415	415	415
Headtube length	H	105	115	145	165	185	220
Bottom bracket drop	I	73	73	73	73	73	73	distance of bottom bracket to hub level
Bottom bracket height	K	269	269	269	269	269	269	distance to ground
Fork rake	L	45	45	45	45	45	45
Slope	M	89	81	90	89	88	98	top tube level distance front to rear
Wheel radius front	N1	342,5	342,5	342,5	342,5	342,5	342,5	tyred
Wheel radius rear	N2	342,5	342,5	342,5	342,5	342,5	342,5	tyred
Standover height	O	721	736	764	784	806	837	top of top tube to ground*
Top tube height	O1	379	394	422	442	464	495	standover height minus bottom bracket height
Fork build height	P	371	371	371	371	371	371	incl. lower headset cups
Front wheel - bottom bracket	Q	575	582	583	595	604	614
Reach	R	381	384	384	390	398	402	center bottom bracket to center headtube, horizontal
Stack	S	498	508	540	559	579	615	center bottom bracket to center headtube, vertical
Stack/Reach (1:x)		1,31	1,32	1,41	1,43	1,45	1,53	ratio stack to reach
Assembled spacers		10 + 35 + 210
		48	51	54	56	58	61

* measured 100 mm ahead of bottom bracket

Order numbers

	Vogue Silver	Industrial Rust	Gold Violet
48 cm	0042403102	0042403202	0042403302
51 cm	0042403105	0042403205	0042403305
54 cm	0042403108	0042403208	0042403308
56 cm	0042403110	0042403210	0042403310
58 cm	0042403112	0042403212	0042403312
61 cm	0042403115	0042403215	0042403315

Bike-Category 2

Road racing bikes, triathlon bikes and time trial machines

This category describes STEVENS road racing and triathlon bikes as well as time trial machines. These are in general road racing bikes with racing handlebars or straight handlebars, triathlon or time trial bicycles. The tyre width is very narrow and measures 22 to max. 32 mm. STEVENS Custom Road, Triathlon, Road.

Instructions on intended use

The maximum permissible overall weight (rider incl. luggage and bicycle) should not exceed 115 kg. Under certain circumstances this maximum permissible overall weight can be further limited by the component manufacturers’ recommendations for use or weight limits. You find more information in the instructions od on the website of the respective component manufacturers.
On STEVENS road racing and triathlon bikes as well as on time trial machines (kids’) trailers, pannier racks and child seats are not permitted.
You find more information on how to use your STEVENS road racing on free rollers (bike rollers without brake) and roller trainers in the chapter “Use of Roller Trainers” in your comprehensive STEVENS user manual.

STEVENS road racing and triathlon bikes as well as time trial machines are intended for use on roads and trails with tarred or paved surface, where the wheels remain in permanent contact to the ground.

If you want to use STEVENS road racing and triathlon bikes as well as time trial machines on public roads, these bikes must be fitted with the prescribed equipment. Observe the traffic rules when riding on public roads. For more information read the chapter “Legal Requirements for Riding on Public Roads” in your comprehensive STEVENS user manual on our website www.stevensbikes.de/manual.

Danger:

STEVENS bicycles of the category 2 are not suitable for off-road use, jumps, slides, stair riding, stoppies, wheelies, tricks etc.!
