Camino RS Framekit

Frame Carbon SL Fiber
Sizes 48, 51, 54, 56, 58, 61 cm

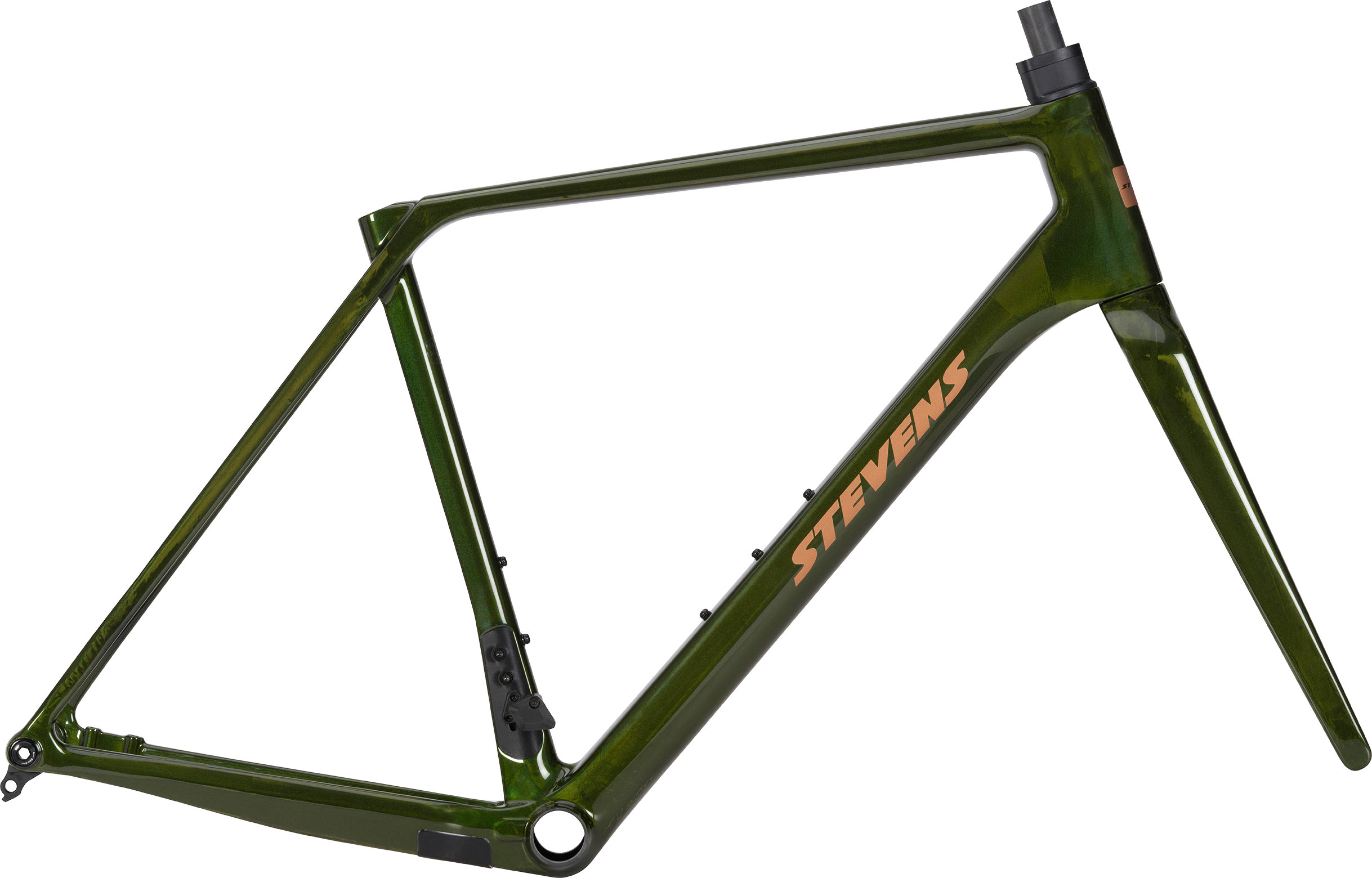

Colors Forest Light

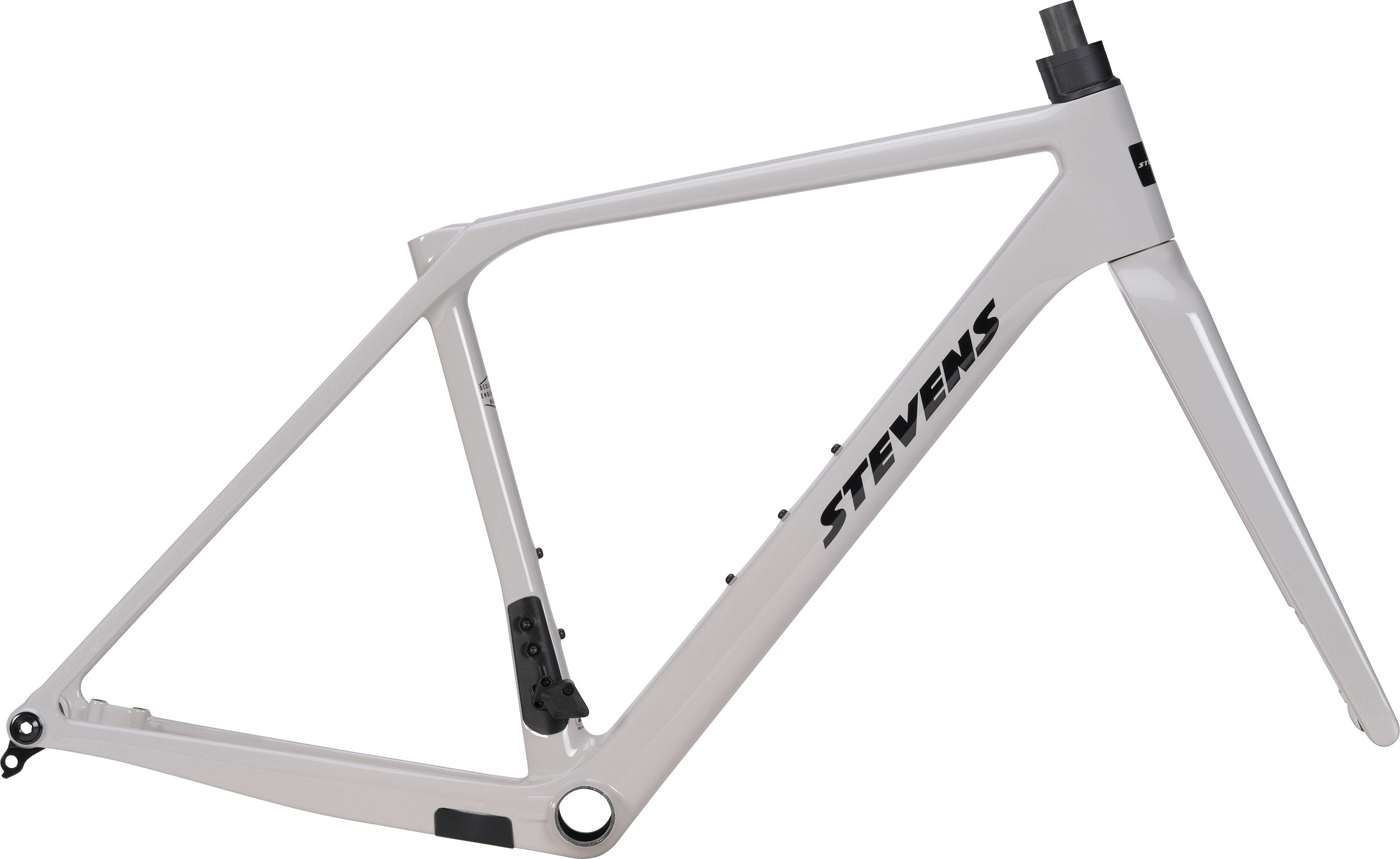

Cool Grey
Nightstone

Pricing

Frame kit
2 499.00 €

Gravel racing redefined

The STEVENS Camino RS is a high-end race gravel bike developed from scratch for competitive use. Based on the geometry of the successful and award-winning Camino series, the frame combines gravel-specific features with design elements from our road bikes that blend in harmoniously. The tapered head tube has an aerodynamic shape, while the fork, down tube and seat stays are based on the characteristic design of the Arcalis Aero road bike with their tear-off edges. The sloping top tube is inspired by the STEVENS Xenith endurance bike and, in addition to a lower standover height, ensures seating comfort on long gravel rides. The frame and fork offer a maximum tyre clearance of 45 millimetres for those looking for the optimal mix of rolling resistance, comfort and weight.

  • Completely newly developed racing model of the Camino series
  • Lightweight, stiffness-optimised high-tech carbon frame with outstanding aero characteristics
  • STEVENS Carbon SL fork for maximum steering precision
  • Up to 45 mm tire clearance for the perfect balance of rolling resistance, comfort, and speed
  • Integrated seatpost clamp for a clean, elegant design

Specifications

Details

Illustration may differ. Specification subject to change.

Chassis

Frame
Carbon SL Fiber
Fork
STEVENS Full Carbon SL
  • Tapered Steerer 1 1/8" - 1.5"
  • O.L.D.: 100 mm
  • Brake: flatmount disc

Data

Laden weight
115 kg
Color(s)
Cool Grey | Forest Light | Nightstone
Frame weight
985 g
Fork weight
435 g
Sizes
48, 51, 54, 56, 58, 61 cm





Geometry

schematische Skizze eines Fahrrades mit eingezeichneten Geometrie-Messpunkten

Frame height (cm)   48 51 54 56 58 61 Measuring mode
Seattube length A1 551 572 595 616 638 660 nominal
Seattube length A2 430 460 490 520 550 580 bottom bracket to top of seattube
Seattube length A3 430 460 490 520 550 580 bottom bracket to top of top tube
Top tube length B 501 520 542 564 588 611
Top tube horizontal C 515 537 559 581 603 625 center headtube to center seatpost/seattube
Headtube angle (°) D 70 71 71,5 71,5 72 72
Seattube angle (°) E 75,5 74,5 74 73,5 73,5 73
Wheelbase F 1018 1022 1035 1052 1070 1086
Chainstay length G 425 425 425 425 425 425
Headtube length H 110 125 145 165 185 205
Bottom bracket drop I 70 70 70 70 70 70 distance of bottom bracket to hub level
Bottom bracket height K 284 284 284 284 284 284 distance to ground
Fork rake L 55 55 55 55 55 55
Slope M 110 96 89 80 72 64 top tube level distance front to rear
Wheel radius front N1 354,3 354,3 354,3 354,3 354,3 354,3 tyred
Wheel radius rear N2 354,3 354,3 354,3 354,3 354,3 354,3 tyred
Standover height O 751 777 802 827 852 876 top of top tube to ground*
Top tube height O1 467 493 518 543 568 592 standover height minus bottom bracket height
Fork build height P 401 401 401 401 401 401 incl. lower headset cups
Front wheel - bottom bracket Q 603 607 620 637 654 670
Reach R 377 384 395 406 422 432 center bottom bracket to center headtube, horizontal
Stack S 533 551 572 591 612 631 center bottom bracket to center headtube, vertical
Stack/Reach (1:x)   1,41 1,43 1,45 1,46 1,45 1,46 ratio stack to reach
Assembled spacers   8,8 + 3*5 + 2*10
    48 51 54 56 58 61

* measured 100 mm ahead of bottom bracket
