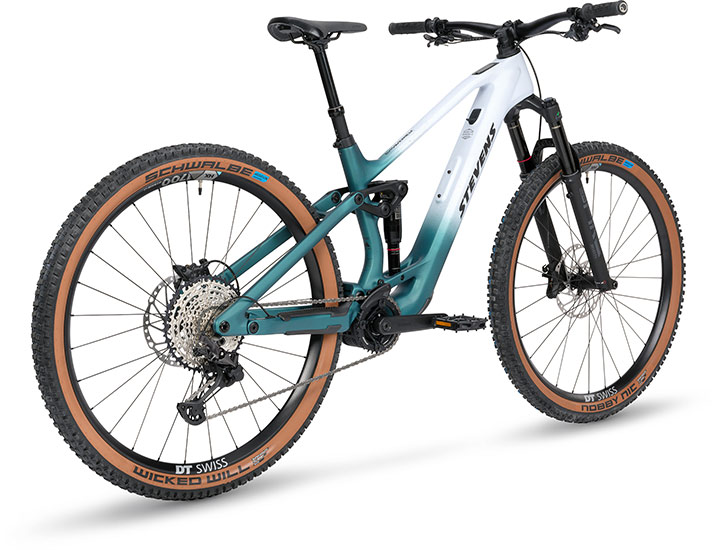

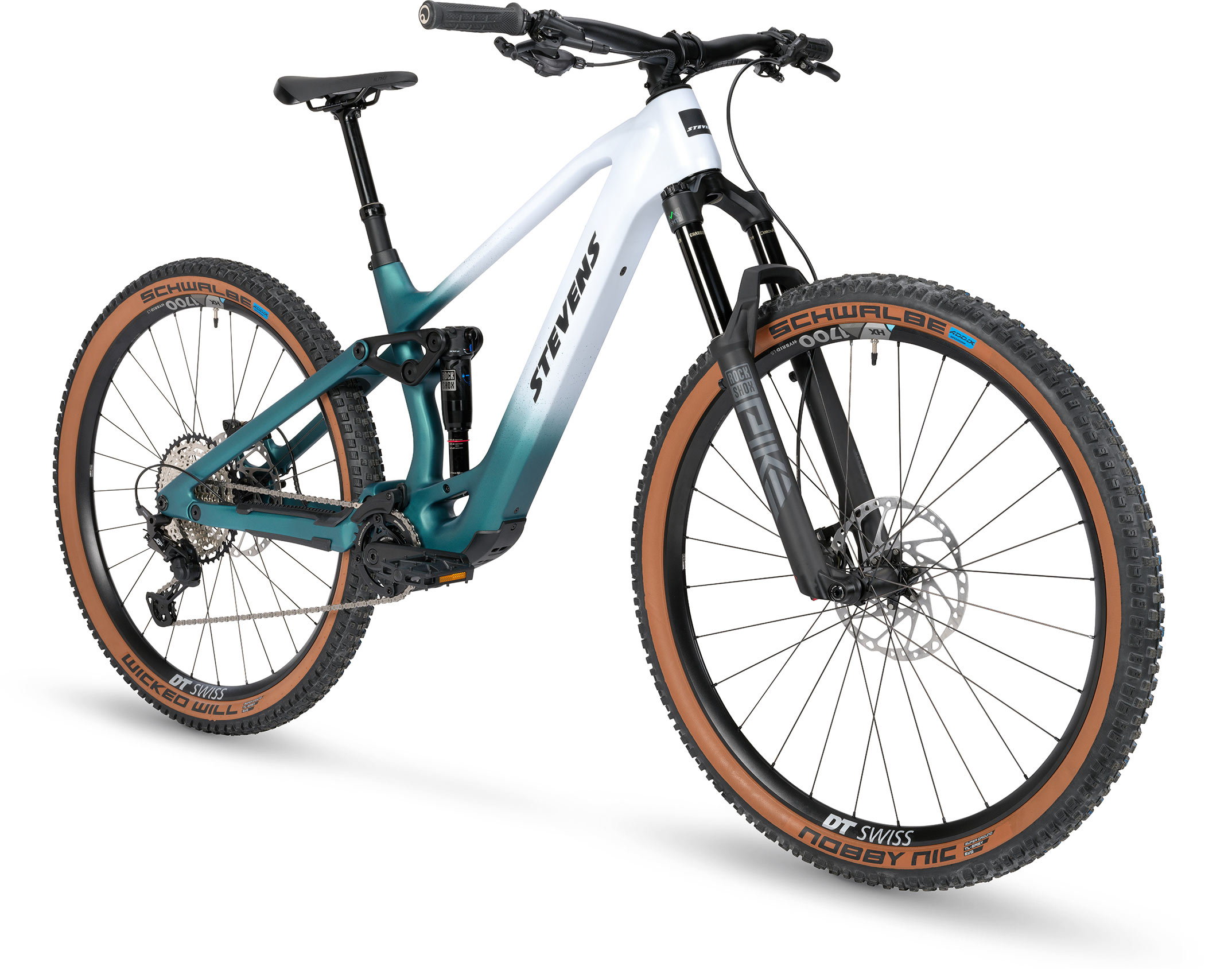

E-Maverick AM 7.4.3

Frame Carbon SL HMF
Weight 18.2 kg
Sizes 29" - R1, R2, R3, R4, R5
Color Ocean Glow

Pricing

recomm. retail price
7 149.00 €

With tailwind on the trail

The E-Maverick AM 7.4.3 receives a color update with the new Ocean Glow design. Like the top model E-Maverick AM 9.4.3, it features the new TQ HPR60 drive system with a 360 Wh battery and the new TQ color display. The popular Shimano Deore XT M8100 1x12-speed groupset ensures precise gear changes, while the 140 mm RockShox Select+ suspension delivers proven performance and practical adjustability for all rider types.

  • Progressive light-assist all-mountain E-Fully with lightweight carbon frame and top equipment
  • Sensitive 140 mm RockShox suspension with Pike Select+ fork & Deluxe Select+ rear shock
  • TQ-HPR60 drive with up to 60 Nm torque & new TQ-HRP colour display
  • Lightweight, compact 360 Wh battery, expandable with optional 160 Wh range extender for even more reach
  • Foldable, lightweight Schwalbe Nobby Nic/Wicked Will Evo 29-inch tyres

Technology

E-Maverick frame sizes

E-Maverick frame sizes

Optimised frame sizes are part of the new E-Maverick concept. They are part of a balanced, modern and harmonious geometry.

Read more …
QR15 thru axle

QR15 thru axle

The most functional method of anchoring the front wheel in the (suspension) fork.

Read more …
Block Lock headset with impact protection

Block Lock headset with impact protection

No bumps in tight bends: the Acros Block Lock headset gives E-MTB bikers maximum control.

Read more …
Dropper post

Dropper post

Optimum seat height for drive efficiency. Press the button. Saddle down for technical descents.

Read more …

E-Maverick frame sizes

E-Maverick frame sizes

Part of the new frame geometry are overall shorter seat tubes, which nevertheless allow the use of longer dropper posts. This gives customers the opportunity to ride different frame heights without any problems and thus better customise the riding position and characteristics of the bike to their own needs. Frame size stickers have been specially developed for this purpose. They provide information about the frame height (R1 to R5 or S to XL), the ideal size range for the rider and the stack and reach values of the frame.

QR15 thru axle

QR15 thru axle

The "15" stands for the axle diameter, the "QR" for "Quick Release" – and together for the most functional method of anchoring the front wheel in the (suspension) fork. The advantages are impressive: high rigidity, precise brake disc positioning and foolproof operation. STEVENS therefore equips all mountain bikes and E-MTBs as well as the highest quality trekking bikes, cross bikes and E-bikes with them. For (E-)MTBs in particular, the installation width has even been increased – from 100 to 110 mm, which is even stiffer.

Block Lock headset with impact protection

Block Lock headset with impact protection

Anyone travelling on alpine trails with their E-MTB demands maximum control. Thanks to its 150° pivot angle and high-quality ball bearing, the Acros Block Lock headset with integrated cable routing ensures that the top tube is optimally protected from impacts in tight bends or in the event of a fall. The fact that this results in fewer crashes in the first place is a further benefit of the impact protection.

Dropper post

Dropper post

Optimum seat height for drive efficiency. Press the button. Saddle down for technical descents. Button ... it could go on and on – and on some technical trails, the seatpost remote is used more often than the front derailleur shifter. Experts in riding fun and safety agree: rarely has an innovation brought such convincing advantages and so few disadvantages (weight, price) as seatposts with infinitely adjustable seat height.

Specifications

Details

Illustration may differ. Specification subject to change.

Chassis

Frame
Carbon SL HMF
  • O.L.D.: 148 mm
  • Brake: Postmount-Disc 180
  • Tretlager: TQ
  • Zugverlegung: intern
Fork
RockShox Pike Select+
  • Travel: 140 mm
  • Air suspension
  • Tapered Steerer 1 1/8" - 1.5"
  • O.L.D.: 110 mm
  • Brake: postmount disc 7"
  • Charger 3.1 RC2
Headset
Acros Blocklock Taper 1 1/8"-1 1/2"
  • Upper bearing cup: ZS56/28.6
  • Lower bearing cup: ZS56/40
Shock absorber
Rock Shox Deluxe Select+
  • Travel: 140 mm
  • Air suspension
  • Length: 205 mm
  • Shock travel: 57.5 mm
  • Mounting width: Trunnion Mount/22.2x8 mm
Brake front
Shimano BR-M6120
  • Hydraulic disc brake
  • 4 pistons
Brake rear
Shimano BR-M6100
  • Hydraulic disc brake
  • 2 pistons
Brake disc
Shimano SM-RT64
  • Rotor size: 203 mm
  • Center-Lock

Drivetrain

Crankset
Scorpo
  • BB type: Bosch / ISIS
Motor sprocket
FSA TQ
  • 32 T
  • Chainline: 55 mm
Derailleur rear
Shimano Deore XT Shadow+
  • RD-M8100-SGS
  • 12-speed
  • Total capacity: 41 T
Chain
Shimano CN-M6100
Cassette
Shimano SLX
  • CS-M7100
  • 12-speed
  • Combination: 10-12-14-16-18-21-24-28-33-39-45-51 T
Pedals
MTB Flatpedal Reflex

E-System

Engine
TQ HPR60
  • Continuous rated power: 300 W
  • Max. torque: 60 Nm
  • Breakaway at 25 km/h (15.5 mph)
Battery
TQ HPR-BAT01
  • Kapazität: 360 Wh/6.8 Ah
  • Voltage: 50.4 V
  • Technology: Li-Ion
Charger
TQ 4A charger

Wheelset

System wheel front
DT Swiss HX 1700 Spline
  • Axle: QR15x110 mm
  • Tubeless ready
System wheel rear
DT Swiss HX 1700 Spline
  • Axle: QR12x148 mm
  • Tubeless ready
Tires
Schwalbe Nobby Nic Evolution
  • Tire size: 62-622
  • Foldable
  • ADDIX Compound

Cockpit

Handlebar
Scorpo
  • Width: 780 mm
  • Backsweep: 9°
  • Rise: 25.4 mm
  • Clamp: 35 mm
Stem
Scorpo
  • Handlebar clamp: 35 mm
  • Angle: 5°
Saddle
Fizik Terra Alpaca X5
Seatpost
Scorpo DPR-E
  • Travel: 125 mm | 150 mm
  • Remote Lockout
  • Length: 410 mm | 460 mm
  • Diameter: 30.9 mm
  • Insertion depth: 100 mm
Shift lever right
Shimano Deore XT
  • SL-M8100-R
  • 12-speed
Brake lever
Shimano BL-M6100
  • 2 finger
  • I-SPEC EV
Display
TQ HPR Colordisplay
Bell
STEVENS D85 bell

Data

Weight
18.2 kg
Laden weight
140 kg
Color(s)
Ocean Glow
Sizes
29" - R1, R2, R3, R4, R5

Geometry

schematische Skizze eines Fahrrades mit eingezeichneten Geometrie-Messpunkten

The online size guide does not replace advice from a specialist retailer. It serves as an initial orientation and may differ from personal preferences. A test ride offers the best comparison.

Frame height   R1 R2 R3 R4 R5 Measuring mode
Seattube length A1 621 635 645 657 666 nominal
Seattube length A2 385 425 440 455 475 bottom bracket to top of seattube
Seattube length A3 317 322 325 338 353 bottom bracket to top of top tube
Top tube length B 534 554 580 603 628
Top tube horizontal C 564 588 613 639 665 center headtube to center seatpost/seattube
Headtube angle (°) D 65,4 65,4 65,4 65,9 65,9
Seattube angle (°) E 77,4 77,2 76,9 76,9 76,7
Wheelbase F 1187 1214 1244 1267 1293
Chainstay length G 440 440 444 444 444
Headtube length H 95 110 120 130 140
Bottom bracket drop I 33 36 36 36 36 distance of bottom bracket to hub level
Bottom bracket height K 343,5 337 337 337 337 distance to ground
Fork rake L 44 44 44 44 44
Slope M 292 301 307 306 300 top tube level distance front to rear
Wheel radius rear N2 377 377 377 377 377 tyred
Standover height O 750,5 744,5 748 756 766 top of top tube to ground*
Top tube height O1 407 407,5 411 419 429 standover height minus bottom bracket height
Fork build height P 554 554 554 554 554 incl. lower headset cups
Front wheel - bottom bracket Q 749 777 802 825 851
Reach R 439 460 480 505 527 center bottom bracket to center headtube, horizontal
Stack S 608 622 631 643 652 center bottom bracket to center headtube, vertical
Stack/Reach (1:x)   1,38 1,35 1,31 1,27 1,24 ratio stack to reach
Seatpost diameter   30,9 30,9 30,9 30,9 30,9
Stem length   40 40 50 50 50 center-center
Stem angle (°)   5 5 5 5 5
Handlebar diameter   35 35 35 35 35
Assembled spacers   9,5 + 6*5 + 5
Handlebar width   780 780 780 780 780
Cranklength   165 165 165 165 165
    R1 R2 R3 R4 R5

All variable geometry values refer to the regular riding position (with rider on board and slightly compressed suspension fork)

* measured 100 mm ahead of bottom bracket
