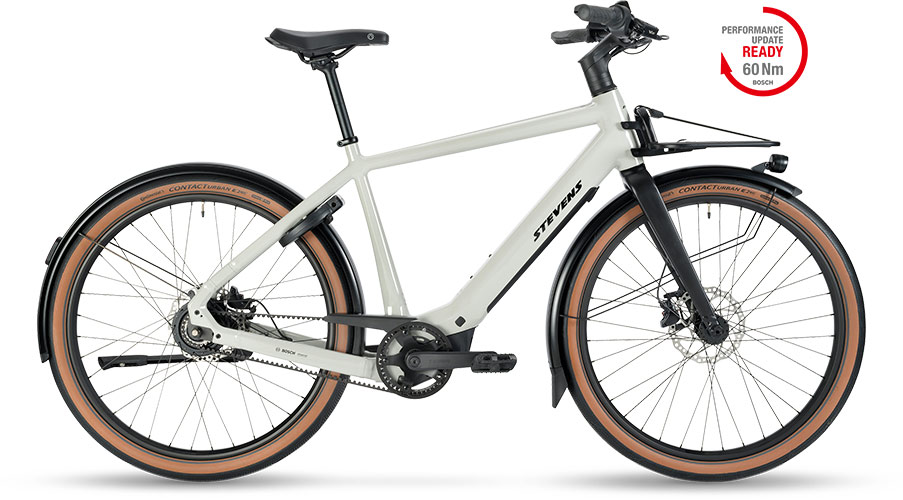

E-Simeto

Gewicht	23.6 kg
Frame	Aluminium 6061
Maten	HT S, M, L, XL
Color	Sand Grey

Prijzen

Adviesprijs: 3 999,00 Fr.

Design that moves you.

Travel quickly, safely and comfortably in the city. Be ready for the spontaneous. Alone, with friends or family. Thanks to its modular design, the STEVENS E-Simeto offers a high degree of flexibility. The E-urban bike, which has been newly developed from the ground up, has a sporty and confident appearance. No matter where you want to go, the E-Simeto with its standard front carrier and optional rear carrier is your urban companion for practically every occasion and every practical opportunity. The finely tuned geometry of the lightweight aluminium frame combines agile handling with a high level of comfort. The lightweight, compact Bosch Performance Line SX Drive Unit ensures powerful progress in city traffic as well as on cross-country tours. Its 400 Wh Bosch CompactTube battery sits inconspicuously in the down tube and can be removed for charging purposes.

Completely newly developed E-Urban bike with a wide range of uses
Lightweight aluminium frame with full cable integration and SnapIt 2.0-compatible front carrier
Agile Bosch Performance Line SX Drive Unit with 55 Nm torque & removable, particularly lightweight Bosch CompactTube 400 battery
Low-maintenance Gates carbon belt drive with continuously variable Enviolo Urban hub
27.5" wheels with 55 millimetre wide tyres for a comfortable ride

Galerij

Foto's kunnen afwijken. Uitrusting onderhevig aan verandering.

Chassis

Frame

Aluminium 6061

O.L.D.: 135 mm
Brake: postmount disc 7"
BB: Bosch
Cable routing: internal

Voorvork

STEVENS S-Lite Aluminium

Tapered Steerer 1 1/8" - 1 1/2"
O.L.D.: 100 mm
Brake: postmount disc 7"
Fender mounts

Balhoofd

Acros Taper 1 1/8"-1 1/2"

Upper bearing cup:ZIS56/28.6
Lower bearing cup: ZS56/40

Voorrem

Tektro Volans

HD-T3520-F
Hydraulic disc brake
4 pistons

Achterrem

Tektro Volans

HD-T3520-R
Hydraulic disc brake
2 pistons

Remschijf

Tektro TR180-17

Rotor size: 180 mm
6-bolt

Aandrijflijn

Crankstel

Oxygen E-Scorpo

BB type: Bosch / ISIS

Motor sprocket

Gates CDC chainring

46 T

Riem

Gates CDN Center Track Carbon Drive Belt

Length: 120 T

Achterderailleur

Enviolo Urban

Stepless gear hub
Gear range: 256%
Freewheel
Axle: 10x135 mm threaded

Cassette

Gates CDX Center Track sprocket

22 T

Pedalen: ATB Pro Reflex

E-System

Motor

Bosch G4 Performance Line SX

The smart system
Continuous rated power: 250 W
Max. torque: 55 Nm
Breakaway at 25 km/h (15.5 mph)
No of notches: 4 drive modes with support levels 60-340 % plus walk assistance
Mileage: See BOSCH Range Assistant

Accu

Bosch CompactTube 400

The smart system
Capacity: 400 Wh/11.1 Ah
Voltage: 36 V
Technology: Li-Ion

Lader: Bosch 2A charger

Wielen

Naaf voor

Strummer TP-1

Axle: QR15x100 mm

Velgen

Oxygen Taurus 26

ETRTO: 26 x 584

Banden

Continental Contact Urban

Tire size: 55-584
Safety Pro
PureGrip
Reflective stripes

Cockpit

Stuur

Oxygen E-Scorpo

Width: 640 mm
Backsweep: 35°
Rise: 20 mm
Clamp: 31.8 mm

Stuurpen

Scorpo

Handlebar clamp: 31.8 mm
Angle: 20°

Zadel: Selle Royal ON Male

Zadelpen

LightSKIN LED Alloy

Length: 350 mm
Diameter: 27.2 mm
Insertion depth: min. 100 mm
Integrated taillight
5 LEDs

Versnellingshendel rechts

Enviolo Twist Controller

Twist shifter
With Display

Remhendel

Tektro HD-T532

3 finger

Display

Bosch Purion 200

The smart system

Koplamp

Supernova Mini 3

Illuminance: 100 lux
Always On function

Achterlicht

Supernova TL 3 Z

Stationary taillight

Bagagedrager

Racktime Frontgepäckträger

System: SNAP IT 2.0

Spatborden: Curana Orbit mudguards

Kickstand: STEVENS Edge

Bel: STEVENS D85 bell

Gegevens

Gewicht: 23.6 kg

Toegest. totaalgewicht: 140 kg

Kleur(en): Sand Grey

Maten: HT S, M, L, XL

Technologie

Enviolo hub

Effortless shifting with low operating forces and at standstill as well as under full load - only the continuously variable Enviolo hub gear offers this.

Lees meer …

QR15 thru axle

The most functional method of anchoring the front wheel in the (suspension) fork.

Lees meer …

Tyre clearance up to 54 mm

More riding comfort and puncture protection for E-bikes with tyres up to 55 mm wide.

Lees meer …

Dropouts with integrated pannier rack eyelets

Guarantees a stable and therefore secure connection.

Lees meer …

LightSkin LED seatpost

Lightweight aluminium, five bright LEDs – the LightSkin LED seatpost is the ideal complement to the classic rear light.

Lees meer …

Enviolo hub

With its proven "Continuously Variable Planetary" CVP technology, the continuously variable Enviolo hub offers superior shifting comfort. Rotating metal balls inside – instead of the usual gear wheels – allow an infinite number of gear ratios with a wide gear range, easy shifting and an enormous gear range of up to 380 per cent (Enviolo Trekking hub).

QR15 thru axle

The "15" stands for the axle diameter, the "QR" for "Quick Release" – and together for the most functional method of anchoring the front wheel in the (suspension) fork. The advantages are impressive: high rigidity, precise brake disc positioning and foolproof operation. STEVENS therefore equips all mountain bikes and E-MTBs as well as the highest quality trekking bikes, cross bikes and E-bikes with them. For (E-)MTBs in particular, the installation width has even been increased – from 100 to 110 mm, which is even stiffer.

Tyre clearance up to 54 mm

If you frequently ride your E-bike on less than optimal roads, you can fit tyres up to 55 mm wide. And then benefit from the maximum riding comfort and puncture protection that their extra large air volume brings, because you can now ride with even lower tyre pressure. The frames and forks of these bikes are already prepared for this.

Dropouts with integrated pannier rack eyelets

In collaboration with pannier rack specialists Tubus/Racktime STEVENS’ engineers have developed a dropout that also serves as an elegant pannier rack mount. It not only looks fantastic, it also ensures that forces caused by luggage or large amounts of groceries are evenly transmitted inot the frame – resulting in a more stable and safer design.

LightSkin LED seatpost

The LightSKIN seat post is equipped with LEDs which, in conjunction with the rear light integrated in the rear mudguard, increase the visibility of the bike in busy urban traffic.

Geometrie

schematische Skizze eines Fahrrades mit eingezeichneten Geometrie-Messpunkten

Het online maatadvies is geen vervanging voor het advies van een speciaalzaak. Het dient als een eerste oriëntatie en kan afwijken van persoonlijke voorkeuren. Een proefrit biedt de beste vergelijking.

Framemaat		S	M	L	XL	Meetmethode
Zitbuislengte	A1	606	618	638	657	Nominaal
Zitbuislengte	A2	460	510	540	570	Hart trapas tot bovenkant zitbuis
Zitbuislengte	A3	397	447	477	507	Hart trapas tot bovenkant bovenbuis
Bovenbuislengte	B	565	581	602	622
Bovenbuis horizontaal	C	585	605	625	645	Tot snijpunt zadelpen
Hoek van de balhoofdbuis (°)	D	70	70	70	70
Zitbuishoek (°)	E	74	73	73	73
Wielbasis	F	1118	1130	1151	1172
Lengte van de liggende achtervork	G	471	471	471	471
Lengte van de balhoofdbuis	H	165	175	195	215
Trapasverlaging	I	65	65	65	65	Afstand tot naafhoogte*
Trapashoogte	K	286	286	286	286	Afstand tot grond*
Vorksprong	L	45	45	45	45
Sloping	M	160	125	114	105	Hoogteverschil bovenbuis voor/achter
Standoverhoogte	O	751	784	807	832	Bovenkant bovenbuis tot grond**
Top tube height	O1	465	498	521	546	standover height minus bottom bracket height
Inbouwhoogte van de voorvork	P	400	400	400	400	Incl. de onderste balhoofdcup*
Afstand voorwiel tot trapas	Q	654	667	688	709
Reach	R	415	424	439	453	Horizontaal van trapas tot balhoofdbuis
Stack	S	582	591	610	628	Verticaal van trapas tot balhoofdbuis
Stack/reach (1:x)		1,4	1,39	1,39	1,39	Verhouding stack tot reach
Diameter van de zadelpen		27,2	27,2	27,2	27,2
Stuurpenlengte		90	90	90	90	Hart op hart
Stuurpenhoek (°)		20	20	20	20
Stuurklem		31,8	31,8	31,8	31,8
Gemonteerde spacers		6,6 + 6*10
Stuurbreedte		640	640	640	640
Cranklengte		170	170	170	170
		S	M	L	XL

* Incl. berijder en met iets ingeveerde verende voorvork (standaard fietshouding)

** measured 100 mm ahead of bottom bracket, fork and rearshock not compressed (static)

Bike-Category 1 E

E-city and E-trekking bikes

This category describes STEVENS E-city and E-trekking bikes.

Instructions on intended use

The maximum permissible overall weight (comprising rider, luggage, possibly trailer load and electric bicycle) should not exceed 140 kg. Under certain circumstances this maximum permissible overall weight can be further limited by the component manufacturers’ recommendations for use.
STEVENS E-city and E-trekking bikes are designed for a trailer load of 40 kg without and 80 kg with trailer brake.
Child seats are permitted on STEVENS E-city and E-trekking bikes For more information see the chapter “Use of Child Seats” in your comprehensive STEVENS user manual.

Keep in mind that every bicycle or pedelec type is built for a specific intended use. Be sure to use your STEVENS pedelec only according to its intended use, as the STEVENS pedelec may otherwise not withstand the stress, fail and cause an accident with unforeseeable consequences! Using it for another than the intended use will also void the warranty.

Danger:

STEVENS bikes of the category 1 E are not suitable for off-road use, jumps, slides, stair riding, stoppies, wheelies, tricks etc.!

	Sand Grey
S	825051104
M	825051107
L	825051110
XL	825051113
