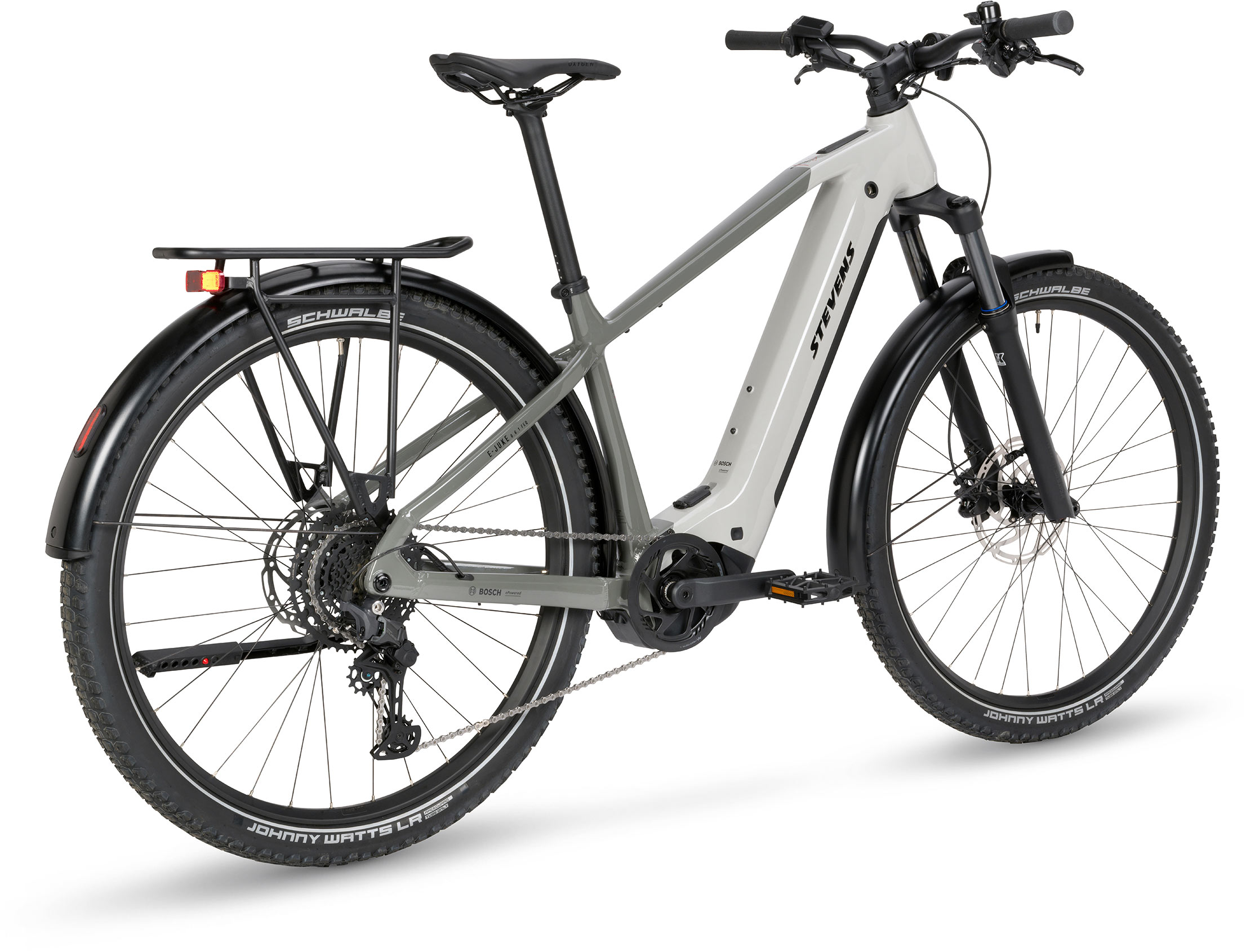

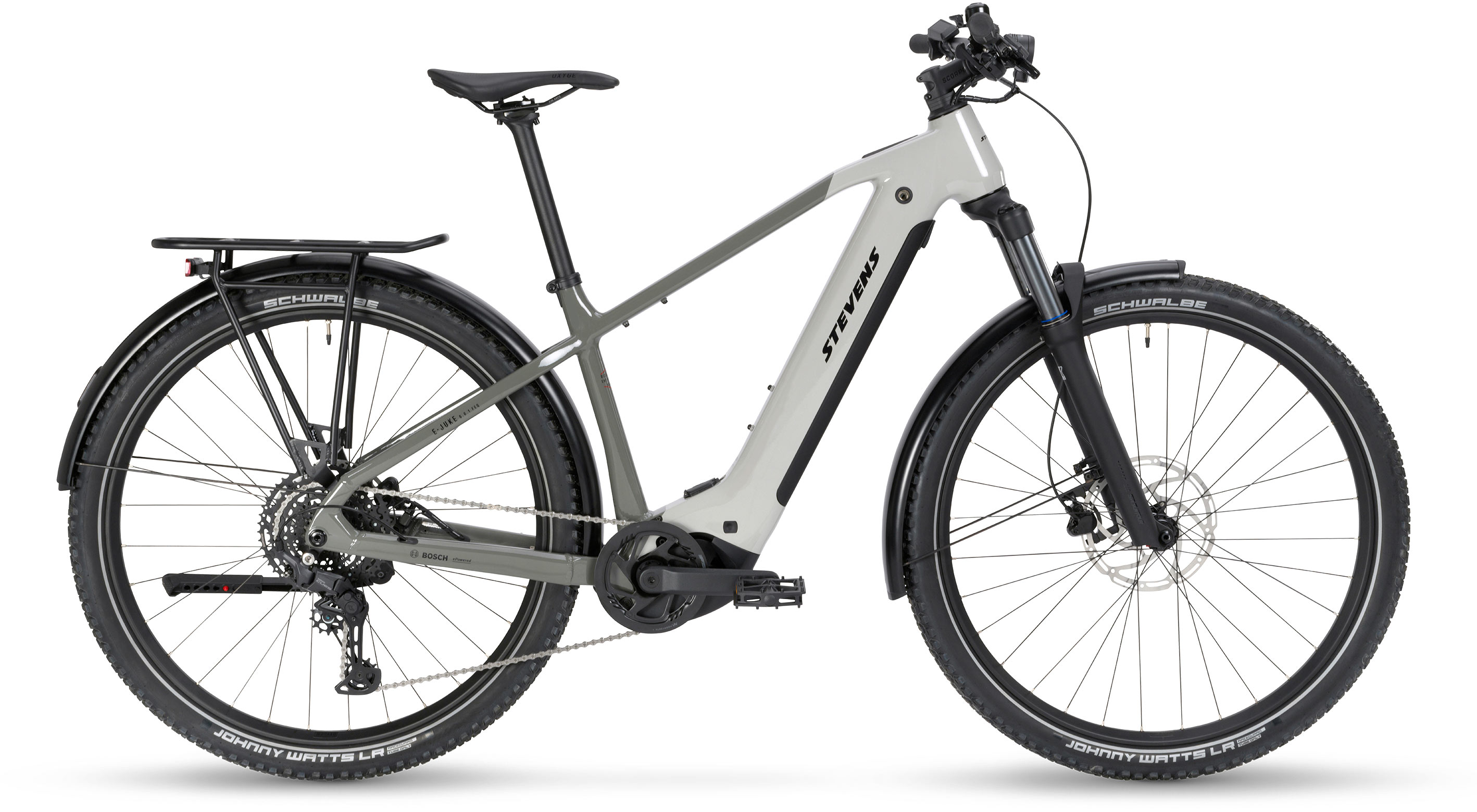

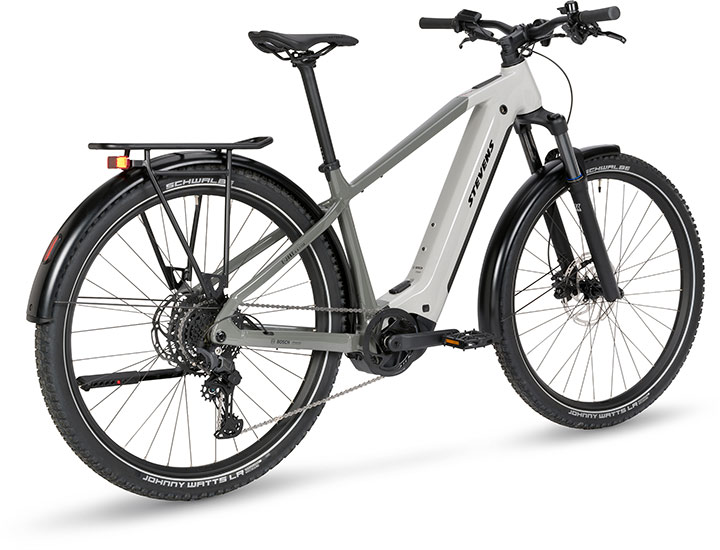

E-Juke 6.6.1 FEQ

Weight 25.9 kg
Frame Aluminium 6061
Sizes 27,5" - 14" | 29" - 16", 18", 20", 22"
Color London Grey

Pricing

—

All-round SUV e-hardtail with Bosch Power

The E-Juke 6.6.1 FEQ is the ideal companion – whether for commuting, an after-work detour through the woods or weekend tours. At its heart is the smart Bosch Performance Line Drive Unit with a 600 Wh battery, which provides powerful, quiet and natural assistance with up to 75 Nm of torque. The Schwalbe Johnny Watts tyres offer smooth running, durability and strong puncture protection. Available in London Grey with full FEQ everyday equipment: robust aluminium mudguards, powerful LED lighting and Racktime rear rack.

  • E-Hardtail with smart component selection and FEQ equipment
  • New Bosch Performance Line Drive Unit with powerful 75 Nm torque
  • Lightweight Bosch 600 Wh PowerTube battery
  • Reliable Tektro brakes with 203/180 mm brake discs
  • Wide range of frame heights with customised wheel sizes

Specifications

Details

Illustration may differ. Specification subject to change.

Chassis

Frame
Aluminium 6061
  • O.L.D.: 148 mm
  • Brake: postmount disc 7"
  • BB: Bosch
  • Cable routing: internal
Fork
SR Suntour XCR36X-Boost R
  • Travel: 120 mm
  • Air suspension
  • Tapered Steerer 1 1/8" - 1.5"
  • O.L.D.: 110 mm
  • Brake: postmount disc 7"
Headset
Acros Blocklock Taper 1 1/8"-1.5"
  • Upper bearing cup: ZS56/28.6
  • Lower bearing cup: ZS66/40
Brake front
Tektro HD-M280
  • Hydraulic disc brake
  • 2 pistons
Brake rear
Tektro HD-M280
  • Hydraulic disc brake
  • 2 pistons
Brake disc front
Tektro TR203-35
  • Rotor size: 203 mm
  • Center-Lock
Brake disc rear
Tektro TR180-35
  • Rotor size: 180 mm
  • Center Lock

Drivetrain

Crankset
FSA CK-747/IS
  • BB type: Bosch / ISIS
Motor sprocket
FSA
  • 36 T
  • Chainline: 52 mm
Derailleur rear
Shimano CUES U6000 Shadow+
  • RD-U6000-GS
  • 10/11-speed
  • Total capacity: 39 T
Chain
Shimano CN-LG500
  • LINKGLIDE
Cassette
Shimano CS-LG300-10
  • 10-speed
  • Combination: 11-13-15-17-20-23-28-34-41-48 T
Pedals
MTB Flatpedal Reflex

E-System

Engine
Bosch Performance Line
  • BDU346Y
  • The smart system
  • Continuous rated power: 250 W
  • Max. torque: 75 Nm
  • Breakaway at 25 km/h (15.5 mph)
  • No of notches: 4 drive modes with support levels 60-340 % plus walk assistance
  • Mileage: See BOSCH Range Assistant
Battery
Bosch PowerTube 600
  • The smart system
  • Capacity: 600 Wh/16.7 Ah
  • Voltage: 36 V
  • Technology: Li-Ion
Charger
Bosch 4A charger

Wheelset

Hubs rear
Formula FCL-548S
  • Axle: QR12x148 mm
Hubs front
Formula FCL-811
  • Axle: QR15x110 mm
Rims
Oxygen Disc 32
  • ETRTO: 27.5": 32 x 584 | 29": 32 x 622
Tires
Schwalbe Jonny Watts Performance
  • Tire size: 27.5": 60-584 | 29": 60-622
  • ADDIX Compound
  • Reflective stripes

Cockpit

Handlebar
Oxygen Scorpo
  • Width: 740 mm
  • Backsweep: 9°
  • Rise: 25 mm
  • Clamp: 31.8 mm
Stem
Scorpo
  • Handlebar clamp: 31.8 mm
  • Angle: 5°
Saddle
Oxygen Havoc
Seatpost
Scorpo
  • Diameter: 30.9 mm
  • Insertion depth: min. 100 mm
Shift lever right
Shimano CUES U6000
  • SL-U6000-10R
  • 10-speed
Brake lever
Tektro MD-M820
  • 2 finger
Display
Bosch Purion 200
  • The smart system
Headlight
Litemove SC 160
  • Illuminance: 160 lux
Taillight
Supernova TL 3 Z
  • Stationary taillight
Carrier
Racktime E-MTB rear rack
  • System: SNAP IT 2.0
Mudguards
Curana Apollo 80
Kickstand
STEVENS Ursus
  • Kickstand mount: KSA 40
Bell
STEVENS D85 bell

Data

Weight
25.9 kg
Laden weight
140 kg
Color(s)
London Grey
Sizes
27,5" - 14" | 29" - 16", 18", 20", 22"

Geometry

schematische Skizze eines Fahrrades mit eingezeichneten Geometrie-Messpunkten

The online size guide does not replace advice from a specialist retailer. It serves as an initial orientation and may differ from personal preferences. A test ride offers the best comparison.

Frame height (")   14 16 18 20 22 Measuring mode
Seattube length A1 630 675,5 679,6 649,1 709,4 nominal
Seattube length A2 370 400 440 490 545 bottom bracket to top of seattube
Seattube length A3 340 364,7 367 384 412,2 bottom bracket to top of top tube
Top tube length B 592,9 598,8 611 629 648,1
Top tube horizontal C 592,2 600 616,5 637,4 663,8 center headtube to center seatpost/seattube
Headtube angle (°) D 67,5 68 68,5 68,5 68,5
Seattube angle (°) E 75 75 74,5 74,5 74,5
Wheelbase F 1158,9 1172,5 1177,5 1200 1221,5
Chainstay length G 455 470 470 470 470
Headtube length H 130 125 125 140 155
Bottom bracket drop I 57 70 70 70 70 distance of bottom bracket to hub level
Bottom bracket height K 304,8 305 305 305 305 distance to ground
Fork rake L 44 44 44 44 44
Slope M 277 300 301 297,8 286,6 top tube level distance front to rear
Standover height O 442,2 778 778,8 791,9 813,5 top of top tube to ground**
Top tube height O1 747 473 305,7 486,9 508,5 standover height minus bottom bracket height
Fork build height P 518 518 518 518 518 incl. lower headset cups
Front wheel - bottom bracket Q 709,8 707,5 716,2 738,5 759,9
Reach R 425 425 435 452 468 center bottom bracket to center headtube, horizontal
Stack S 624,1 652,5 654,9 668,9 682,8 center bottom bracket to center headtube, vertical
Stack/Reach (1:x)   1,47 1,54 1,51 1,48 1,46 ratio stack to reach
Seatpost diameter   30,9 30,9 30,9 30,9 30,9
Stem length   60 60 70 80 80 center-center
Stem angle (°)   5 5 5 5 5
Handlebar diameter   31,8 31,8 31,8 31,8 31,8
Assembled spacers   9,5 + 6*5 + 5
Handlebar width   740 740 740 740 740
Cranklength   165 165 165 165 165
    14 16 18 20 22

All variable geometry values refer to the regular riding position (with rider on board and slightly compressed suspension fork)

** measured 100 mm ahead of bottom bracket
