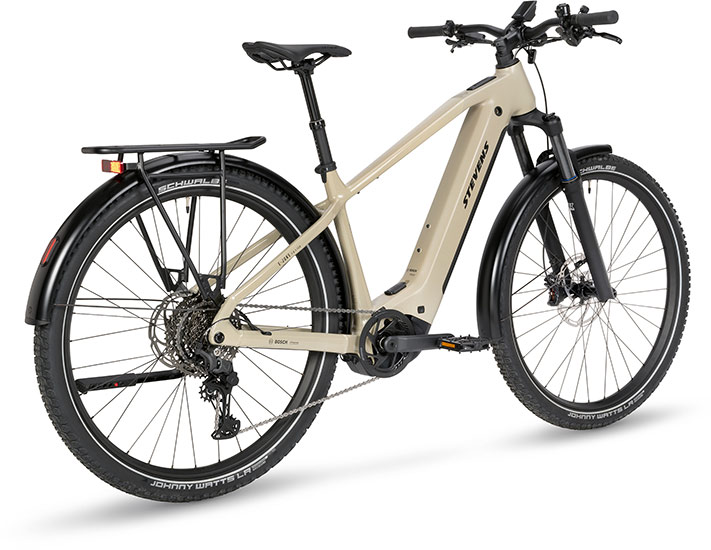

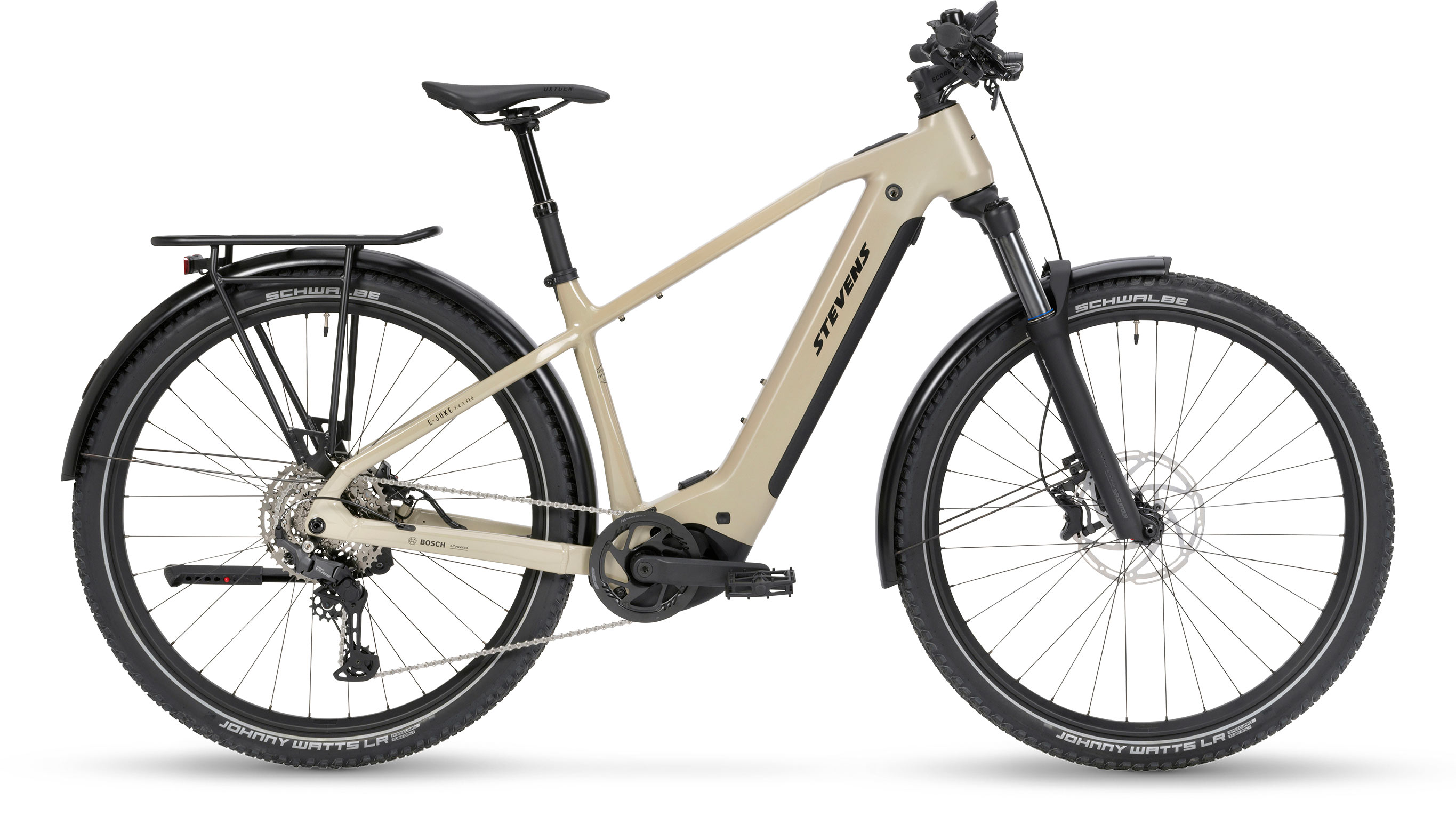

E-Juke 7.8.1 FEQ

Frame Aluminium 6061
Weight 27.7 kg
Sizes 29" - 16", 18", 20", 22"
Color Light Khaki

Pricing

—

Powerful Bosch PX Power SUV e-bike

Whether on your morning commute to the office, on your after-work detour through the woods or on epic trail tours at the weekend – the E-Juke 7.8.1 FEQ impresses with the new Bosch Performance Line PX drive unit, combined with an 800 Wh PowerTube battery for record-breaking range in Eco mode. The high-quality suspension fork with 120 mm travel ensures optimum traction and comfort even on uneven terrain. The 60 mm Schwalbe Johnny Watts tyres with their versatile tread cover a wide range of uses from asphalt to off-road terrain – with high durability and excellent puncture protection. The overall package is rounded off by the complete FEQ everyday equipment with Supernova Mini Pro headlight (150 lux high beam), sturdy aluminium mudguards and robust luggage rack.

  • Powerful hardtail e-crossover bike
  • Bosch Performance Line PX Drive Unit with huge 800 Wh PowerTube battery
  • Wide-range Shimano CUES U6000 1x10-speed drivetrain
  • Smoothly responding air fork with 120 mm suspension travel
  • Versatile thanks to 60 mm wide Schwalbe Johnny Watts tyres

Specifications

Details

Illustration may differ. Specification subject to change.

Chassis

Frame
Aluminium 6061
  • O.L.D.: 148 mm
  • Brake: postmount disc 7"
  • BB: Bosch
  • Cable routing: internal
Fork
SR Suntour XCR36X-Boost 2CR
  • Travel: 120 mm
  • Air suspension
  • Tapered Steerer 1 1/8" - 1.5"
  • O.L.D.: 110 mm
  • Brake: postmount disc 7"
Headset
Acros Blocklock Taper 1 1/8"-1.5"
  • Upper bearing cup: ZS56/28.6
  • Lower bearing cup: ZS66/40
Brake front
Tektro HD-M535
  • Hydraulic disc brake
  • 4 pistons
Brake rear
Tektro HD-M530
  • Hydraulic disc brake
  • 2 pistons
Brake disc front
Tektro TR203-45A
  • Rotor size: 203 mm
  • Center-Lock
Brake disc rear
Tektro TR180-45A
  • Rotor size: 180 mm
  • Center-Lock

Drivetrain

Crankset
FSA CK-747/IS
  • BB type: Bosch / ISIS
Motor sprocket
FSA
  • 36 T
  • Chainline: 52 mm
Derailleur rear
Shimano CUES U6000 Shadow+
  • RD-U6000-GS
  • 10/11-speed
  • Total capacity: 39 T
Chain
Shimano CN-LG500
  • LINKGLIDE
Cassette
Shimano CS-LG400-10
  • 10-speed
  • Combination: 11-13-15-17-20-23-28-34-41-48 T
Pedals
MTB Flatpedal Reflex

E-System

Engine
Bosch Performance Line PX
  • BDU347Y
  • The smart system
  • Continuous rated power: 250 W
  • Max. torque: 90 Nm
  • Breakaway at 25 km/h (15.5 mph)
  • No of notches: 4 drive modes with support levels 60-400 % plus walk assistance
  • Mileage: See BOSCH Range Assistant
Battery
Bosch PowerTube 800
  • The smart system
  • Capacity: 800 Wh/22.2 Ah
  • Voltage: 36 V
  • Technology: Li-Ion
Bedieneinheit
Bosch System Controler
  • Das smarte System
  • LED indicator
Charger
Bosch 4A charger

Wheelset

Hubs rear
Formula FCL-548S
  • Axle: QR12x148 mm
Hubs front
Formula FCL-811
  • Axle: QR15x110 mm
Rims
Oxygen Disc 32
  • ETRTO: 32 x 622
Tires
Schwalbe Jonny Watts Performance
  • Tire size: 60-622
  • ADDIX Compound
  • Reflective stripes

Cockpit

Handlebar
Oxygen Scorpo
  • Width: 740 mm
  • Backsweep: 9°
  • Rise: 25 mm
  • Clamp: 31.8 mm
Stem
Scorpo
  • Handlebar clamp: 31.8 mm
  • Angle: 5°
Saddle
Oxygen Havoc
Seatpost
Scorpo DPR-E
  • Travel: 100 mm | 125 mm | 150 mm
  • Remote Lockout
  • Length: 360 mm | 410 mm | 460 mm
  • Diameter: 30.9 mm
  • Insertion depth: 100 mm
Shift lever right
Shimano CUES U6000
  • SL-U6000-10R
  • 10-speed
Brake lever
Tektro HD-M530
  • 2 finger
Display
Bosch Kiox 300
  • The smart system
Headlight
Supernova Mini 3 Pro
  • Illuminance: 125 lux
  • High beam: 150 lux
  • Close range light
  • Automatic daylight function
Taillight
Supernova TL 3 Z
  • Stationary taillight
Carrier
Racktime E-MTB rear rack
  • System: SNAP IT 2.0
Mudguards
Curana Apollo 80
Kickstand
STEVENS Ursus
  • Kickstand mount: KSA 40
Bell
STEVENS D85 bell

Data

Weight
27.7 kg
Laden weight
140 kg
Color(s)
Light Khaki
Sizes
29" - 16", 18", 20", 22"

Geometry

schematische Skizze eines Fahrrades mit eingezeichneten Geometrie-Messpunkten

The online size guide does not replace advice from a specialist retailer. It serves as an initial orientation and may differ from personal preferences. A test ride offers the best comparison.

Frame height (")   16 18 20 22 Measuring mode
Seattube length A1 675,5 679,6 649,1 709,4 nominal
Seattube length A2 400 440 490 545 bottom bracket to top of seattube
Seattube length A3 364,7 367 384 412,2 bottom bracket to top of top tube
Top tube length B 598,8 611 629 648,1
Top tube horizontal C 600 616,5 637,4 663,8 center headtube to center seatpost/seattube
Headtube angle (°) D 68 68,5 68,5 68,5
Seattube angle (°) E 75 74,5 74,5 74,5
Wheelbase F 1172,5 1177,5 1200 1221,5
Chainstay length G 470 470 470 470
Headtube length H 125 125 140 155
Bottom bracket drop I 70 70 70 70 distance of bottom bracket to hub level
Bottom bracket height K 305 305 305 305 distance to ground
Fork rake L 44 44 44 44
Slope M 300 301 297,8 286,6 top tube level distance front to rear
Standover height O 778 778,8 791,9 813,5 top of top tube to ground**
Top tube height O1 473 305,7 486,9 508,5 standover height minus bottom bracket height
Fork build height P 518 518 518 518 incl. lower headset cups
Front wheel - bottom bracket Q 707,5 716,2 738,5 759,9
Reach R 425 435 452 468 center bottom bracket to center headtube, horizontal
Stack S 652,5 654,9 668,9 682,8 center bottom bracket to center headtube, vertical
Stack/Reach (1:x)   1,54 1,51 1,48 1,46 ratio stack to reach
Seatpost diameter   30,9 30,9 30,9 30,9
Stem length   60 70 80 80 center-center
Stem angle (°)   5 5 5 5
Handlebar diameter   31,8 31,8 31,8 31,8
Assembled spacers   9,5 + 6*5 + 5
Handlebar width   740 740 740 740
Cranklength   165 165 165 165
    16 18 20 22

All variable geometry values refer to the regular riding position (with rider on board and slightly compressed suspension fork)

** measured 100 mm ahead of bottom bracket
